Stroke-by-stroke flowmeter for simultaneous measurement of injected mass and injection rate.

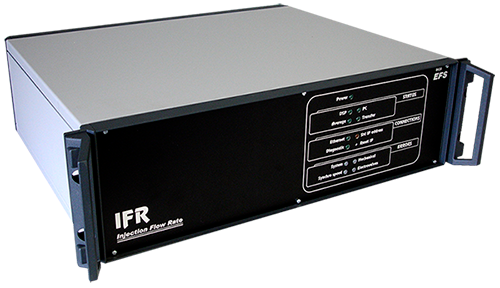

The IFR 600 (Injection Flow and Rate) flowmeter is a device intended to measure injection volumes or masses but also the injection law step by step. It is used to control the high energy systems fitted to modern petrol or diesel engines. It is the perfect dedicated flowmeter in a Research and Development context or for injector production applications because it provides a very detailed analysis of the injector.
Application areas
- Automotives
- Trucks
- Motorbikes
- Diesel generator
Fast
This instantaneous mass flowmeter allows to measure up to 10 injections per revolution.
Compact
Only one device is necessary to measure the quantity injected and the injection rate simultaneously.
Accurate
It offers ultra-fast and accurate measurements of all injection parameters at each turn: quantity injected, injection rate and opening / closing time.
Complete
The IFR 600 flowmeter gives instant, minimum, maximum and standard deviation measurement of all the parameters you need.
The highlights of the IFR600 instantaneous flowmeter
Real time measurements updated with each injection allowing to follow with extreme precision the evolutions of all the injection parameters and to deliver representative statistical results.
Instantaneous flow measurement up to 10 injections / revolution.
Real-time display of the injection rate curve.
Injection rate identical to Bosch tube measurement.
Several automatic and manual cursors for detailed temporal and mass analysis.
Measures largely independent of pressures, quantities, and timing of injections.
Back pressure adjustable from 1 to 100 bar without external equipment. Back pressure generated by the injector.
Configurable measurement window from 90 to 270 ° pump (180 ° to 540 ° motor).
Pump speed range from 60 to 4200 rpm (1 Hz to 70 Hz)
Solid measurement stability in transients and low hysteresis.
Full integrated injector pilot generator (1 to 10 injections per revolution, ramps, etc.).
Automatic analysis of very effective injections (separation of a very small injection close to a large injection, discrimination of pre- and post-injections).
Composition of the IFR 600 instantaneous measurement
Compact ready-to-use set consisting of the following:
- Mechanics integrating mass, volume, pressure and temperature measurements.
- Electronics managing the measurement cycle and carrying out all the calculations at each turn.
- Two 8 meter cables.
- An Ethernet link for connection to the PC
- xIFR software (for Windows)
Dedicated software
xIFR is a supervision interface between the user and the measuring device. This software runs under the Windows ® operating system and uses an Ethernet link.
Technical specifications of the IFR 600 instantanous flowmeter
| MEASURE | ||
| Total volume injected per cycle: | From 0.5 to 600 mm3 (linearized scale) up to 1500 mm3 | |
| Measurement accuracy: | 0.2 mg / stroke 0 to 200 mg, 0.4 mg / stroke up to 600 mg and 1 mg beyond | |
| Injection opening delay: | Accuracy: 0.1 μs |

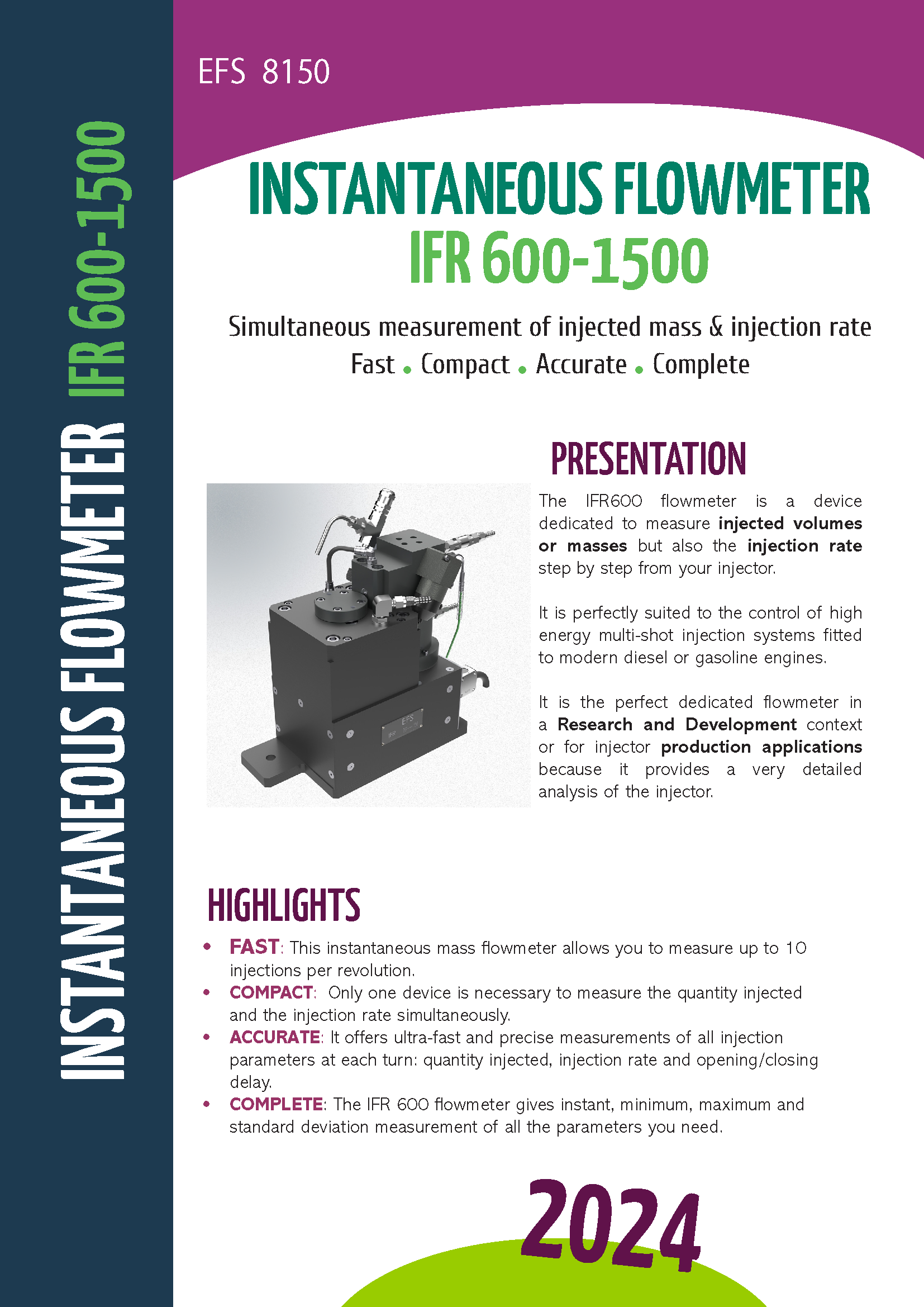

Download the IFR600 brochure
