CONTROL MODULE FOR SOLENOID OR PIEZOELECTRIC INJECTORS

CONTROL OF ALL TYPES OF INJECTORS

EFS offers a complete range of driver modules for solenoid and piezoelectric injectors, compatible with most injectors available on the market.

These power driver modules can be used for various applications:

  • In research and development, this module is used to define the power characteristics of the ECU or MCM to be developed for this injector. It also defines the acceptable tolerance ranges for correct injector operation.
  • In production, the module enables the same command to be reproduced regardless of the IPoD module installed.
Power electronics rack for generating high pulsed currents

EXPERIENCE

Over 35 years’ experience in injector driving

SCALABLE

Numerous advanced functions enable it to adapt to most injectors available on the market

COMPLETE

Solenoid injector – Piezoelectric injector – petrol – diesel – urea

CONTOL RACK FOR SOLENOID AND PIEZOELECTRIC INJECTORS

Power control rack for solenoid injectors

The IPoD coil is a power control module for injectors using magnetoelectric technology. It has several different control modes.

The control modes are derived from a basic cycle comprising the phases required for control: preload, boost, inrush, hold, EOT or BIP, discharge, demagnetization (ref: EFS 8532).

There is also a 6-channel IPoD coil for power control in multiplexed mode for 6 injectors (EFS 8472). Nearby picture.

Power control rack for piezoelectric injectors

The IPoD piezo is a power control module for piezoelectric injectors

It also features several control modes. Its advanced functions include: single peak current control, multiple pulse control and constant current control (ref: EFS 8370).

There is also a 6-channel piezo IPoD for power control in multiplexed mode for 6 injectors (EFS 8478).

6-channel control module for solenoid injector

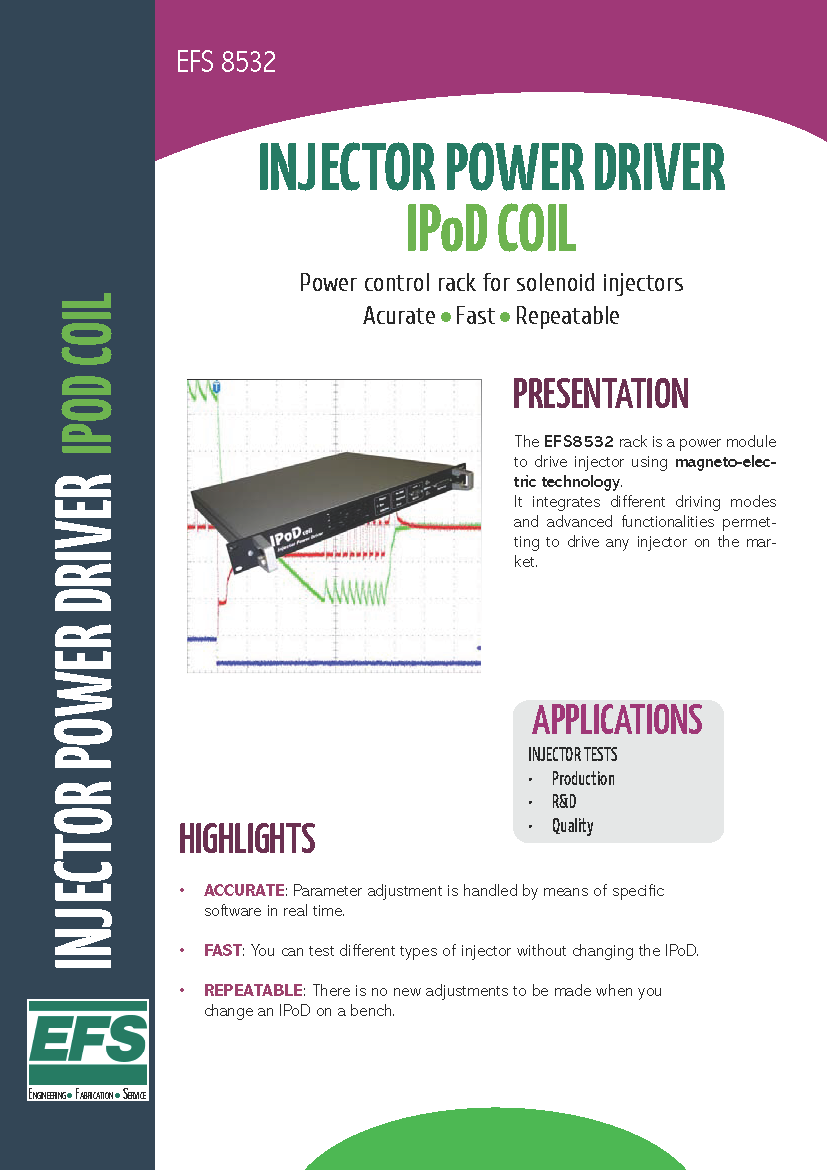

Power driver module brochure
