MULTIPARAMETER ANALYSIS MULTI-PROBE+

Multi-parameter water probe

The multi-parameter water analysis multi-probe+ for continuous monitoring of water quality on drinking water distribution networks.

Many physico-chemical parameters are measured and analyzed: pH, redox, conductivity, turbidity. The flow speed, temperature, pressure, flow are also available.

The Multi-Probe+ is mainly intended for online self-monitoring of the quality of drinking water.

domaines d’application

  • Surveillance de la qualité des réseaux d’eau potable
  • Surveillance de la qualité des eaux de process

Complete

pH, turbidity, redox, flow speed, flow, temperature, pressure, conductivity, battery voltage, 2 analogic inputs 0-10 V

Dedicated integration

Insertion directly into a pressurized drinking water pipe without interruption of service

IOT product

  • Power supply: battery in suitcase for electric energy autonomy
  • Modem communication for wireless communication by Wifi and GPRS

Safe

  • Mechanical robustness (steel)
  • Excessive pressure non-return
  • Safety chain Intrinsic sealing
The mutti-probe+ highlights
$
Fast and easy assembly / disassembly on loaded pipe
$
Slightly intrusive (insertion 1/8 of the nominal diameter of the pipe)
$
Energy self-sufficient
$
Wireless data transmission (GPRS)
$
Modbus RS485 connection
$
Many parameters measured in a single probe head

The composition of the Multi-Probe +

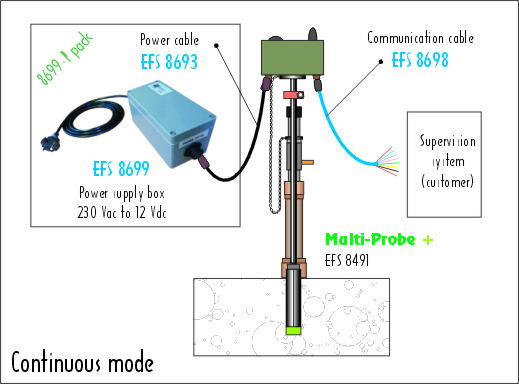

The EFS 8699-P system pack includes:

  • A 12Vdc power supply unit (EFS 8699)
  • a power cable (multi-Probe + connection / power box (EFS 8693)
  • A communication cable (EFS 8698).

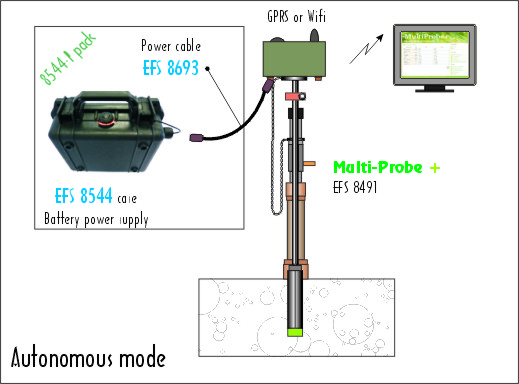

The EFS 8544-P energy pack includes:

  • a battery case (EFS 8544)
  • a power cable (multi-Probe + connection / power case (EFS 8693)
  • optional communication pack: Modem: EFS 8491-MOD

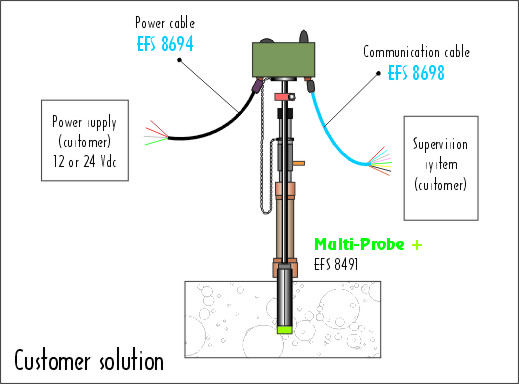

This tailor-made solution with bare wires is available on request and includes:

  • A power cable fitted with a waterproof 4-pin connector on the probe side and 4 bare wires on the other.
  • A power cable fitted with a waterproof 4-pin connector on the probe side and 8 bare wires on the other.

Technical specifications of the probe multi-probe+
